Recommendation for 24VDC, 12A output

AC-DC Power Converters
1

Hi, below are my requirements

Input = 90 to 265 VAC,

Output = 24VDC, 12A, isolated output.

can HR1211 (PFC+LLC) be used by changing the T1 push-pull transformer as in EVHR1211-Y-01A.

Alternate IC or any recommendation please let me know.

Thanks,

Lokeshwar

2

Hello,

Yes, you should absolutely be able to use the HR1211 where changing T1 in this design should adjust the output. I would also adjust the capacitor ratings of the secondary side of the circuit such that all components here should be able to handle the 24Vdc output voltage. As a general rule, all components should be sized to 2-3x the voltage to account for any thermal derating.

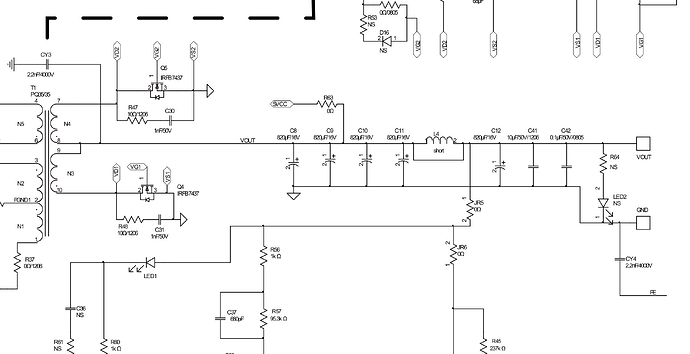

image2159×1109 217 KB

Best,

Krishan
