MPM3683-10 - OCP Operation

Integrated Inductor Power Modules
1

Hi Team,

Kindly explain in detail regarding the over-current (OC) condition for 31 consecutive cycles.
If possible, share any Graphical representation also.

2

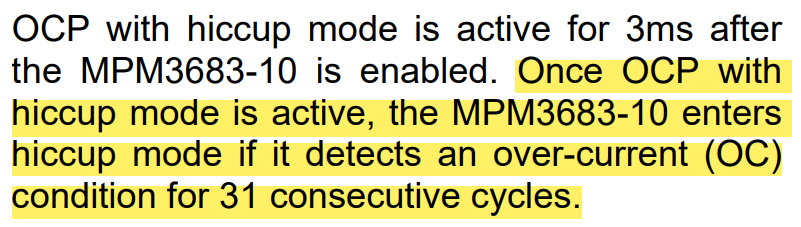

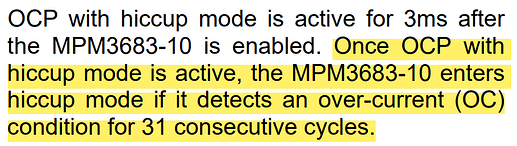

You are referring to this portion of the datasheet, correct?

image801×227 52.3 KB

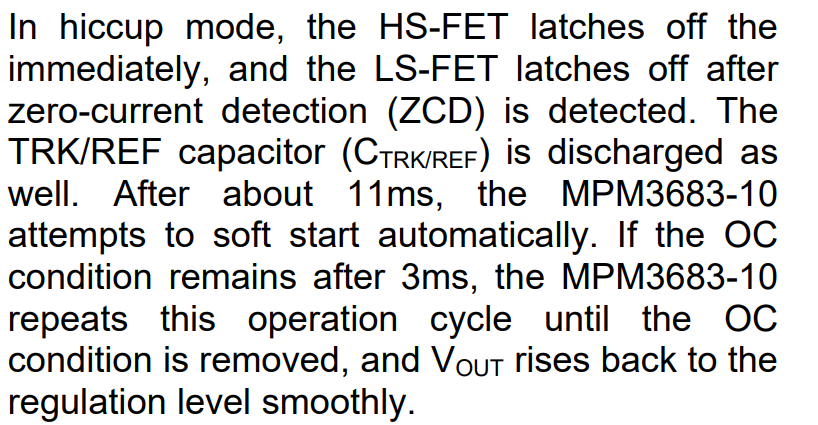

When an OC condition is detected for 31 consecutive cycles, then the MPM3683-10 enters hiccup mode. This is what happens when hiccup mode is enabled:

image818×425 77.2 KB

Are there any questions specifically on hiccup mode specifically?

3

what determines a cycle?

4

I believe when the text here refers to a cycle, this actually translates to the full period cycle relative to the switching frequency being used for the MPM3683-10.

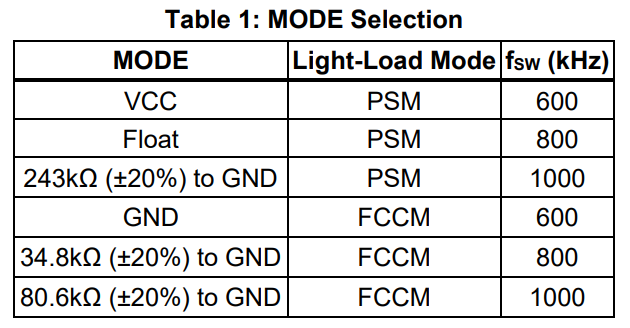

This of course would depend entirely on how the MODE pin is being set up with respect to the following table:

image630×328 41.7 KB
