MP8110 gain specification

Other Products
1

The MP8110 datasheet references gain but does not state a maximum - is there a maximum gain that can be set for the unit and still work?

Thanks,
KM

2

Hello @kmoua,

Welcome to MPS forums. The MP8110 datasheet recommends using the gain as 10 V/V to achieve the required Vout under different load currents and current sense resistors.

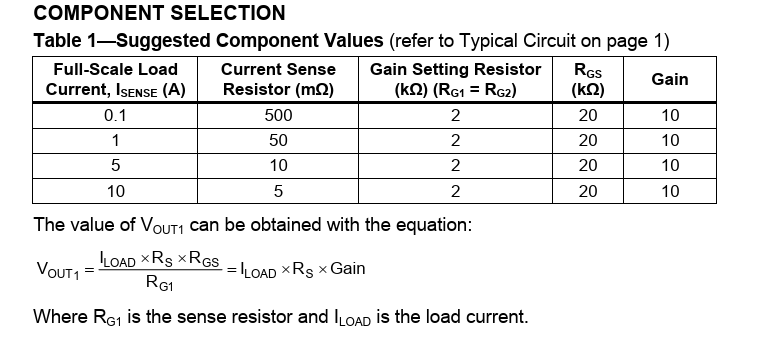

image780×342 18.1 KB

While there’s isn’t a maximum gain mentioned, I would recommend adjusting the current sense resistor (Rs) to achieve the desired output voltage. Note: Vout1 should not exceed 5 V.
