MP8030 used for normal PoE and non PoE on unused pair

[MichelMERLE]

Hi all,

I’m designing a board with a PD circuit that should work in these 3 cases :

1. 48V is present between Ethernet 2 pairs (A)
2. 48V is present between unused pairs (B)
3. no PSE present, so no PoE. Voltage 9-16V present between unused pairs

I was hoping MP8030 was able to switch to ADP “mode” if no handshake is done even if 16V is present on VDD pin.

The question is : Is MP8030 switch to ADP “mode” if 16V present on VDD that risks to make it wait for a potential handshake that will never happen?

Regards,

Michel

[eduardo.FAE]

Hello Michel,

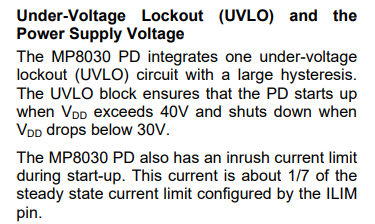

Can you expand on what the ADP “mode” you are looking for is? The following described that the MP8030 will shut down when VDD is below 30V.
