MP3362GJ-P LED driver spice,pspice mode

DC-DC Power Converters
1

Hello

I am looking for spice/pspice model of MP3362GJ-P - please help and provide link to download if available .

I have checked MPSmart software but cannot find this specific part.

Thanks

2

Hello,

It looks like MPS doesn’t have any simulation models for the MP3362.

However, we do have evaluation boards that you can use to replicate your design parameters and test instead. See the following link:

EVQ3362-J-00A | Single-String, 3V VIN_MIN, 36V VOUT, Boost LED Driver Evaluation Board, AEC-Q100 | MPS

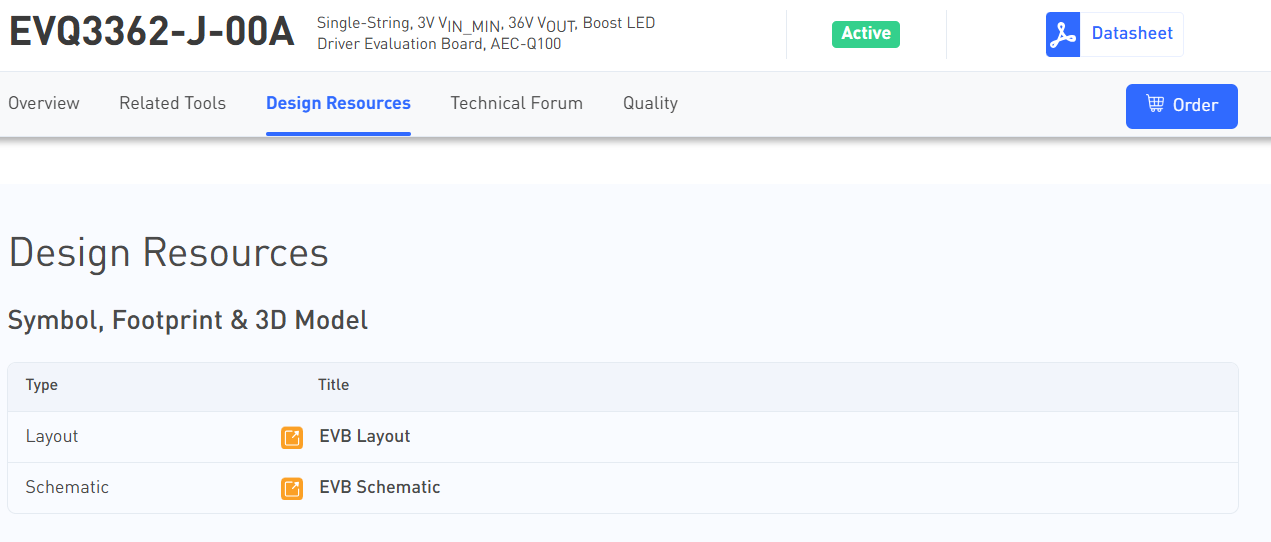

See the Design Resources tab where we have the layout and schematic for further reference:

image1271×542 31.7 KB

Best,

Krishan
