MP2161 OCP measurement

DC-DC Power Converters
1

Dear All,

We use MP2161 for 3.3V to 2.5V/0.7A design but OCP is observed to be lower than 2.7A. OCP measurement is 0.7A, Could you please point out why is too lower OCP? Thanks.

2

Hi Juin,

Thanks for reaching out to MPS. It’s very abnormal that the OCP is tripping with a 0.7A load on the MP2161, can you help provide the saturation current of the inductor you’re using? It’s possible the inductor saturating which can cause a current spike that triggers our OCP.

Thanks,

George

3

Hi George,

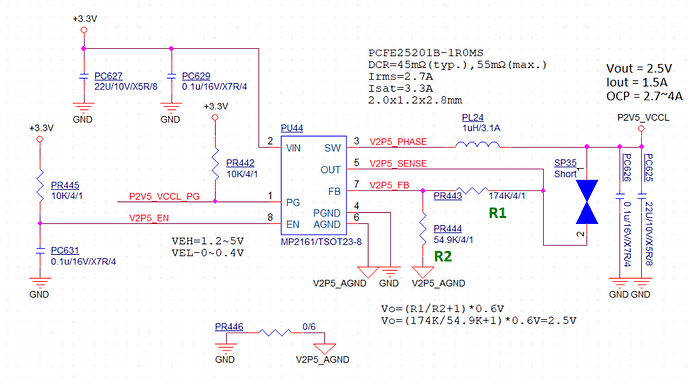

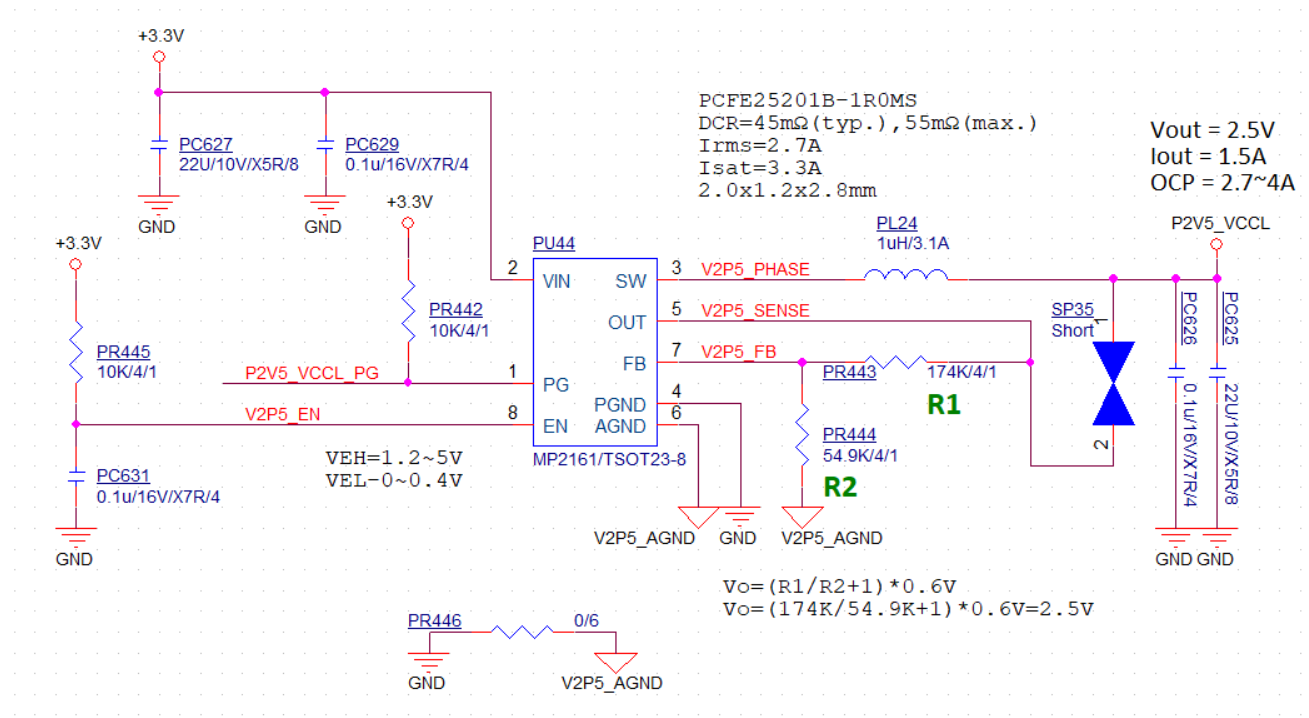

Please see below schematics. So, input 3.3V to 2.5Vout is meet MP2161 specification, right? one more question, Base on datasheet, MP2161 has a typical 3.2A current limit for the hight side switch, does it mean to hit current limit to follow peak of inductor current (Peak is 3.2A)?

image1309×718 165 KB

4

Dear MPS experts,

any updates?
