MP100L is not giving output voltage of 5.0V

DC-DC Power Converters
1

Hi There

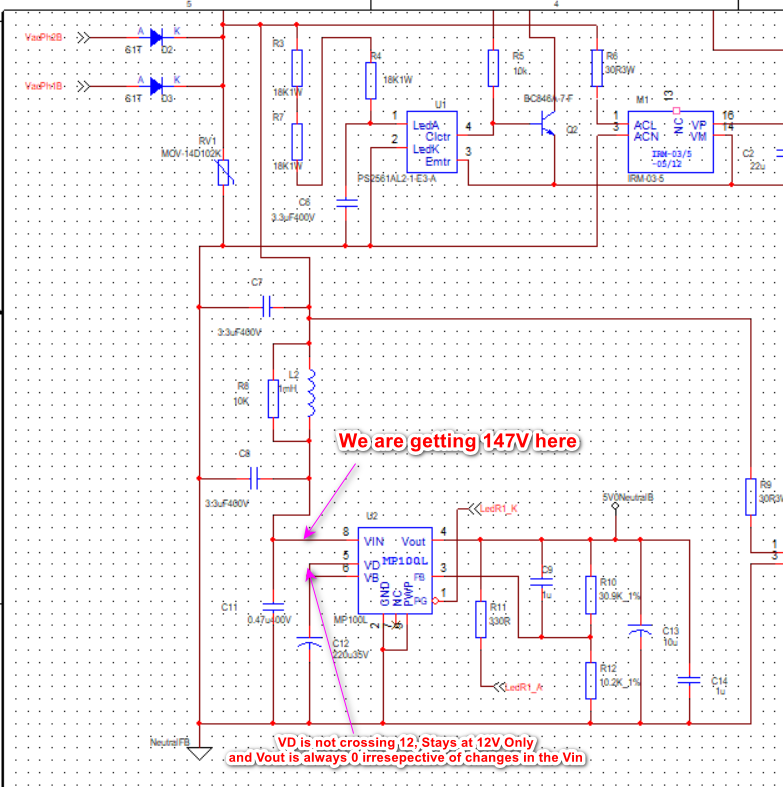

We are getting a problem with output voltage of the regulator even input varies from 85V to 230V. please find below circuit.

image783×787 104 KB

Quick help is required, we are under testing of the board.

Please do the needfull.

2

Hi @ashok,

Please verify the calculation for the VD cap. It should be large enough to provide a stable current. Please refer to VD capacitor selection on pg 12 of the DS.
You can also refer to the EVB DS: EV100L-N-00A for detailed schematic reference.

Thank you
Saurabh
