Mcs1810 / mcs1812

Reference Designs
1

Hello,

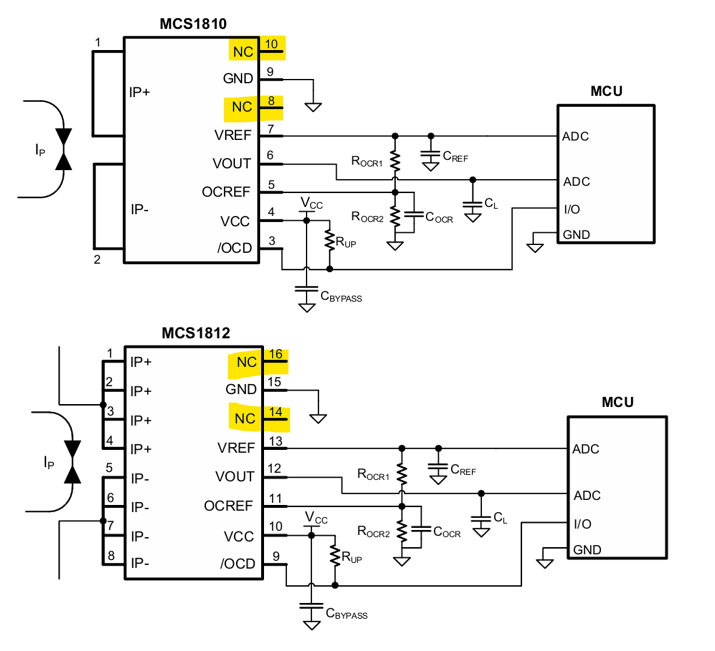

I would like to know if the NC PINs (14 & 16 for MCS1812 and 8 & 10 for MCS1810) can be connected to VCC ? Both datasheets clearly state that these pins are not connected internally, but I’d like to be sure that there are no contraindications?

image715×651 54.8 KB

Thank you,

2

Hi Anneclaire,

It is acceptable to connect these pins to VCC. MPS recommends adding a ~10kΩ resistor to limit current in the event that this pin is connected to a high-impedance source.
