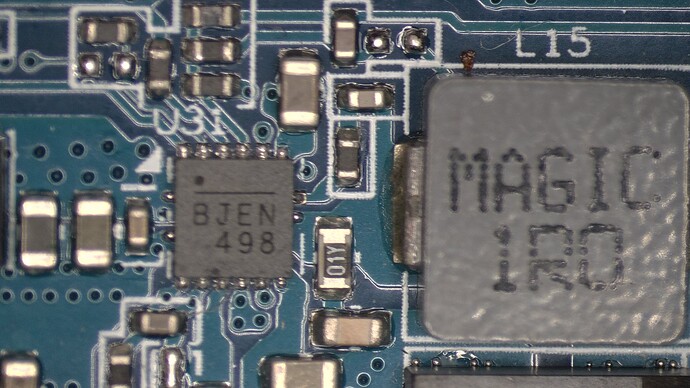

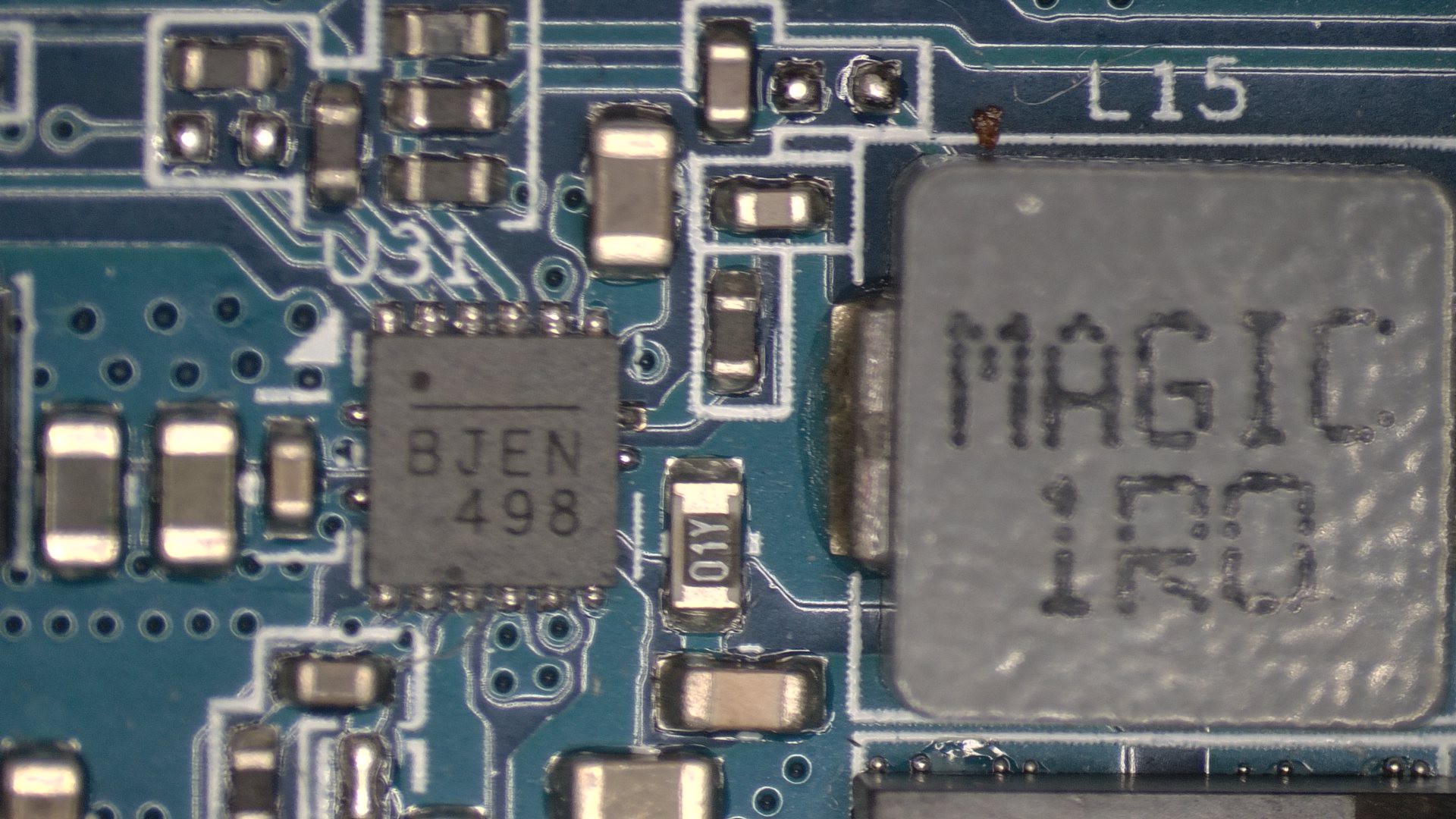

Identify component BJEN

DC-DC Power Converters
1

20250208-161258-205
20250208-161258-2051920×1080 383 KB

Thank you

2

Hi Kinetek,

To correctly find that part number for you, could you please provide the Input and Output voltage of the device?

For your reference, here is MPS Packaging information.
Package Information - Support

3

This is a step down converter. Input is from 5VDC to 20VDC probably. Output do not know for sure 3.3V and 2.5V.

Thanks

4

But, I still need the correct ordering code, please.

5

Hello Kinetek,

I believe the part is NB687. Please find the DS of the part here

NB687(28V, Low IQ, High-Current,Synchronous Buck Converterwith Integrated VPP/VTT/VTTREF)

6

This is cip with tip marking AVT as it states on pdf. Mine is BJE. Are you sure that those are the same units?

7

Hello @kinetek,

I apologies for the earlier comment but the correct part is NB687B

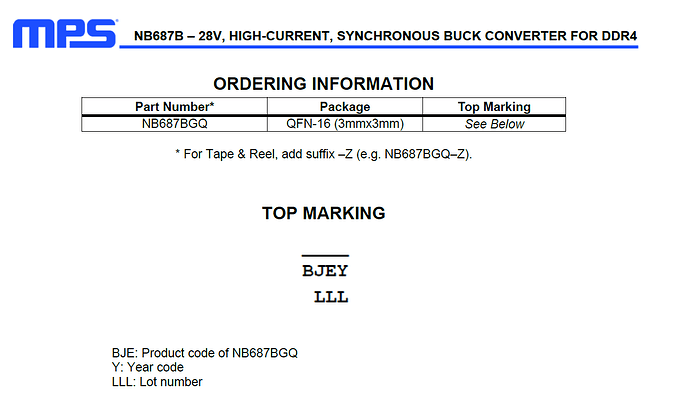

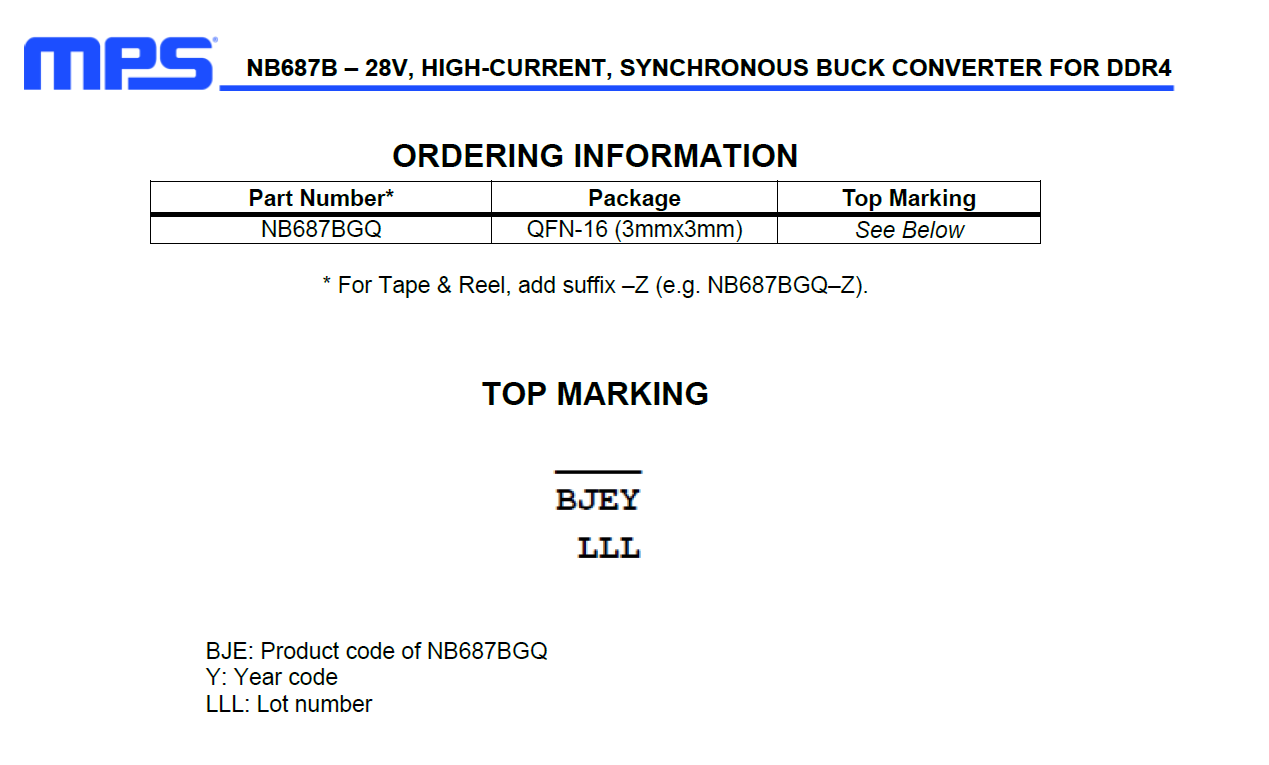

image1269×765 34.2 KB

8

Hello,
Thank you, I believe the pinout is just the same? Can you provide a datasheet for it, please?

9

Hello @kinetek,

The pinout is same for both the parts. Forthe datasheet request, please fill out the MPS NOW Technical Support form

MPS NOW Technical Support form

10

Page not found. The link you followed may be broken, or the page was moved.

11

I mean, please. We are working right? The time is money, and for one chip is so difficoult to move the work forward. Why MPS makes aany step in the process so difficoult.

12

Hello @kinetek,

I understand your frustration and timeline for your project. The link should be working now if not, please use the link below.

13

Thank you for your help.
