Dimensions of EV6004-Q-00A

DC-DC Power Converters
1

Hello,
I am designing a product and I want to use EV6004-Q-00A as a module in my design, but I need to have the cad file or a picture which indicate spacing between the edges and connector, the pitch of the connector … etc.

if the cad file which contain this information is available, it will be better to have it to import it directly in Altium designer.

Thanks in advance.

2

Hi,

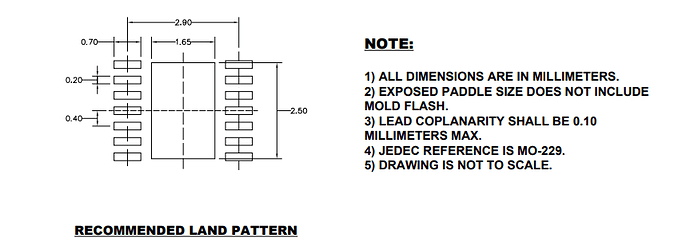

We unfortunately do not have this yet, please refer to MP6004 datasheet page 23

image863×313 30.2 KB

Regards,
Nouman Baryal

3

Thanks for your reply
the datasheet of MCP6004 contains the dimensions of the IC itself and I want to use the module not the IC
I checked EV6004-Q-00A datasheet and I found only the dimension of the board as L x W x H and this is not what I am searching for as I described in the main topic.

4

We cannot provide you a module level CAD/altium file at this time unfortunately.
