Hi,
I am currently using the MP2672AGD battery charger IC. I have connected a 5 V, 2 A adapter as the input power source. However, when I connect the adapter, the battery charging current is only about 300 mA.

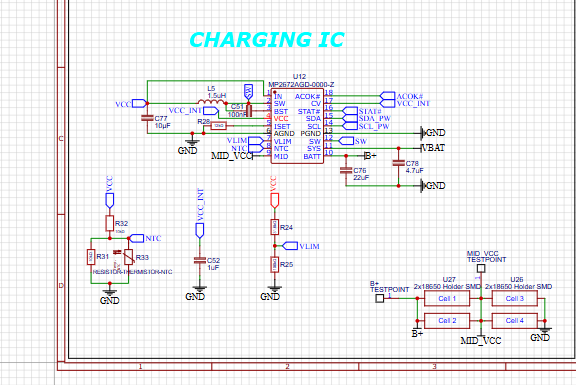

I am also sharing my schematic. Could you please help me identify the possible cause of this issue? Is there anything in the schematic or circuit configuration that could be limiting the charging current?
What is value of R28? the one on ISET pin? it is not very readable
R28 value is 12k ohm.
That should give you 1A max current. I have read on the forum, that current is gets lower as the battery voltage rises. I can confirm that behavior - at ~8.1v the current starts falling to about 300mA
I assume you did not change charge current in register 01 from defaults. Setting Icc value to 0 would also give you about 300mA
I checked the charging current at different battery voltages.
At 7.0 V, the charging current is 0 mA.
At 7.5 V, the charging current is approximately 300 mA.
Also, my design is configured in Standalone Mode, not Host-Control Mode. The I²C (SDA/SCL) pins are not used.
Could you suggest what other conditions might cause this behavior in Standalone Mode?
Hiii….could you please reply still i am waiting for your reply!!!
In schematic you seem to have VCC connected to CV pin. That is host mode setup. But either way, if your SCL/SDA pins are unused, the Icc register value defaults to 0xF, so you should see higher current. Unless you trigger VLIM condition, but that would be unlikely with 2A charger.
Assuming that the chip is in host mode, can you dump register values via I2C?
I checked the Icc register value via I²C, and it reads 0x01. the charging current remains 0 mA. Please let me know if you would like me to check any other things to check.
