About the thermal resistance of MPM54304GMN-0001

[akiyoshi_aikawa]

Hello,

We have received an inquiry from a customer regarding the thermal resistance of MPM54304GMN-0001.
Please provide the thermal resistance values ​​ of MPM54304GMN-0001 listed below.
・Θjc top
・Θjb
・Θjc bottom

They are not listed in the datasheet.

Best regards,

[william.FAE]

Hi @akiyoshi_aikawa ,

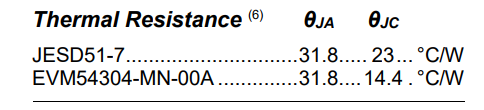

Below are θ_JA and θ_JC from MPM54304 datasheet (datasheet link):

θ_JA is defined as the thermal resistance from the junction to ambient temperature.

θ_JC is defined as the thermal resistance from the junction-to-case temperature on the bottom of the package.

More thermal information is available here.

Thank you, Will

[akiyoshi_aikawa]

Hello william,

Thank you for your reply.

θJC is defined as the thermal resistance from the junction-to-case temperature on the bottom of the package.
->Based on your response, I understand that θJC is “Θjc bottom”.

The customer wants to know the value for the thermal resistance(Θjc top)of MPM54304GMN-0001.
Please provide the value for the thermal resistance(Θjc top) of MPM54304GMN-0001.
・Θjc top: ??℃/W(JESD51-7), ??℃/W(EVM54304-MN-00A)
・θJC(Θjc bottom): 23℃/W(JESD51-7), 14.4℃/W(EVM54304-MN-00A)

Do you have any information about Θjc top?

Best regards,

[william.FAE]

Hi @akiyoshi_aikawa ,

I do not have that information.

I will look into acquiring it for you.

Best, Will
